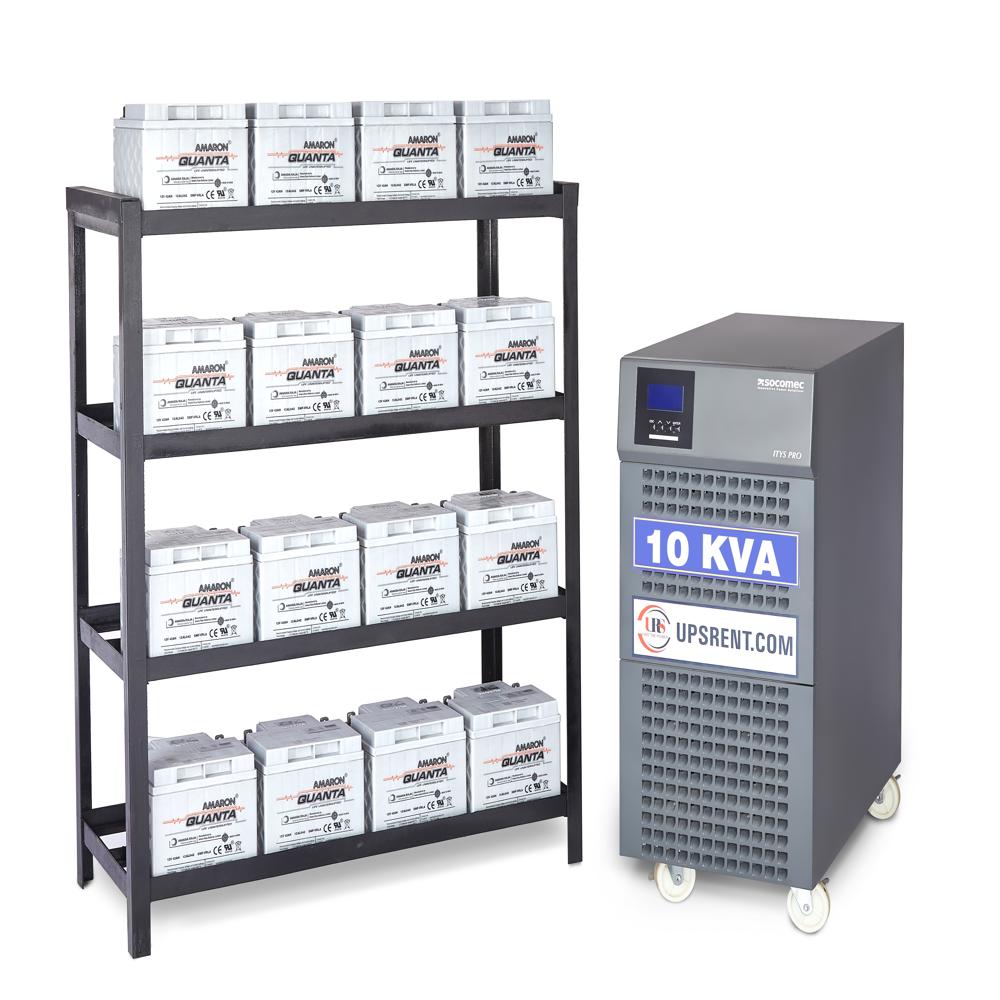

10 KVA Socomec UPS on rent

About 10 KVA Socomec UPS on rent

Socomec ITYS PRO 10 kVA UPS Summary

Power Rating:

• Apparent Power: 10 kVA

• Active Power: 9 kW

• Power Factor: 0.9

Input Specifications:

• Phases: 3-phase + N or 1-phase (configurable)

• Voltage Range: 320480 V (3-phase) or 160280 V (1-phase) @ 50% to 100% load

• Frequency Range: 4070 Hz

• Power Factor / THDi: >0.98 / <3%

Output Specifications:

• Voltage (Ph-Ph):

  • 3/1-ph: 220/230/240 V 1%

  • 3/3-ph: 380/400/415 V 1%

• Frequency: 50/60 Hz 0.1% (with internal clock)

• Overload Capacity:

  • 125% for 10 min

  • 150% for 1 min

• Crest Factor: 3:1

• Bypass: Automatic & Manual (Rated output voltage 15% / 20% for generator selectable)

Battery:

• Internal or External Options: Yes

• Configurable backup time depending on internal/external battery combinations

• Compatible with External Battery Cabinets

Efficiency:

• Online Double Conversion: 95%

• ECO Mode: 98%

• With Transformer: 9193% (depends on load level)

Communication & Monitoring:

• SNMP/Web Interface: Optional

• RS232 / RS485 Port: Yes

• Dry Contacts: Available via optional communication boards

• Software Support: VIEWPOWER, WEB BROWSER, NETVISION

Physical Characteristics:

• Noise Level:

  • Without Transformer: <51 dBA

  • With Transformer: <54 dBA

• Dimensions: Approx. 380 850 830 mm (depends on configuration)

• Weight (without batteries): 90 kg to 130 kg (varies by version)

Environmental:

• Standards Compliance:

  • EN 62040-1 (Safety),

  • EN 62040-2 (EMC),

  • EN 62040-3 (Performance)

Protection & Safety:

• Degree of Protection: IP20

• Overvoltage Category: III

• Cooling: Forced ventilation
