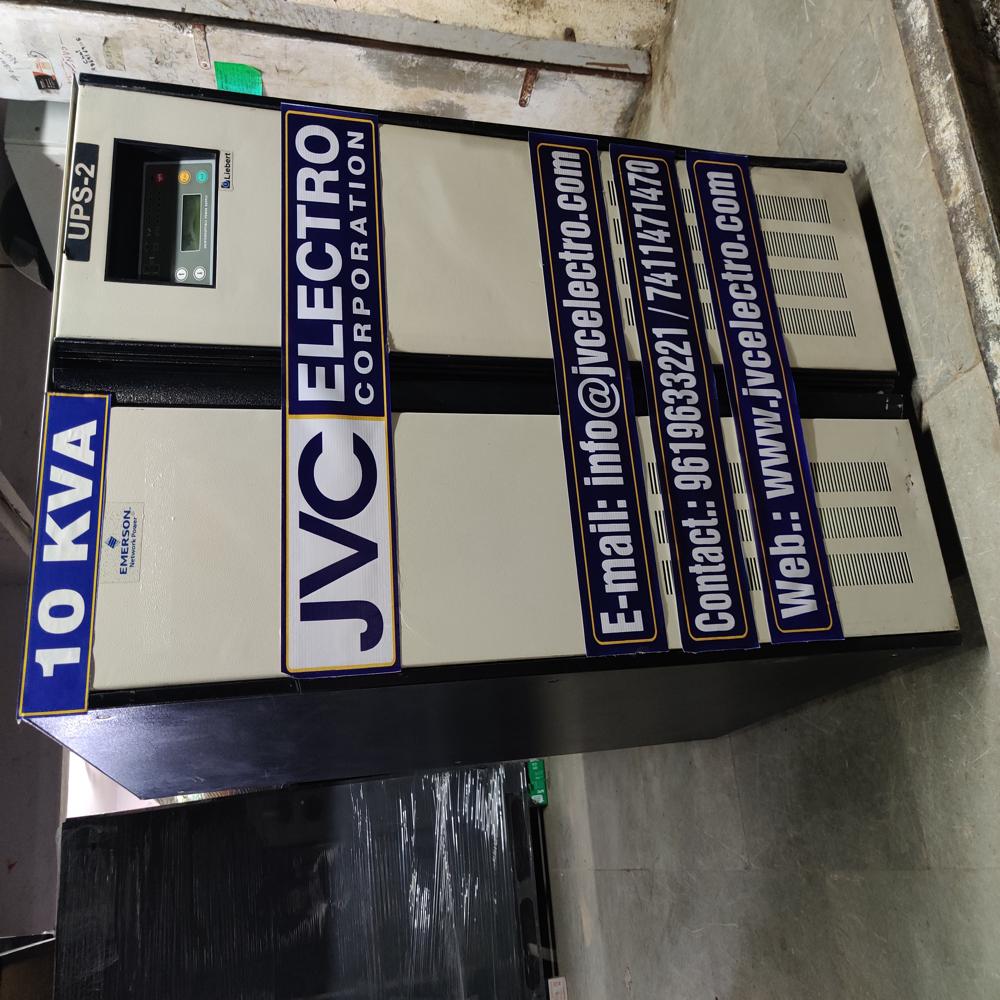

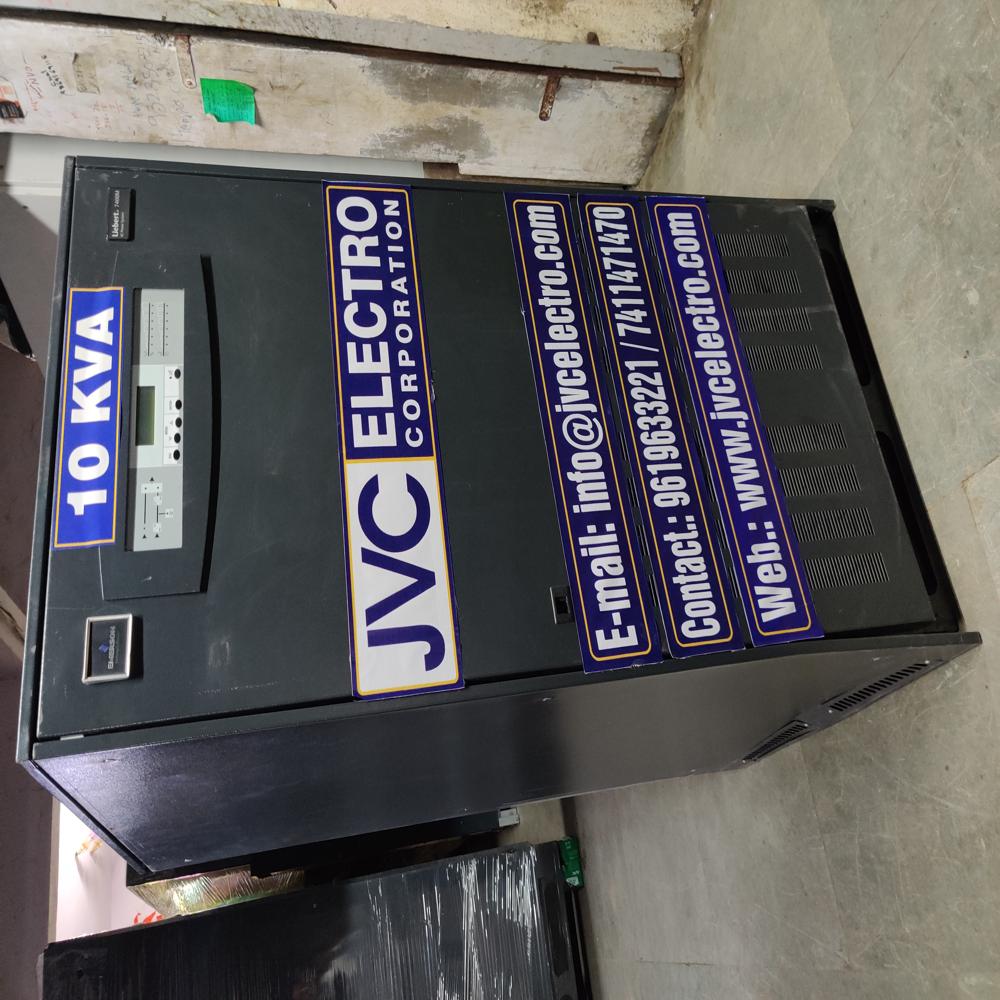

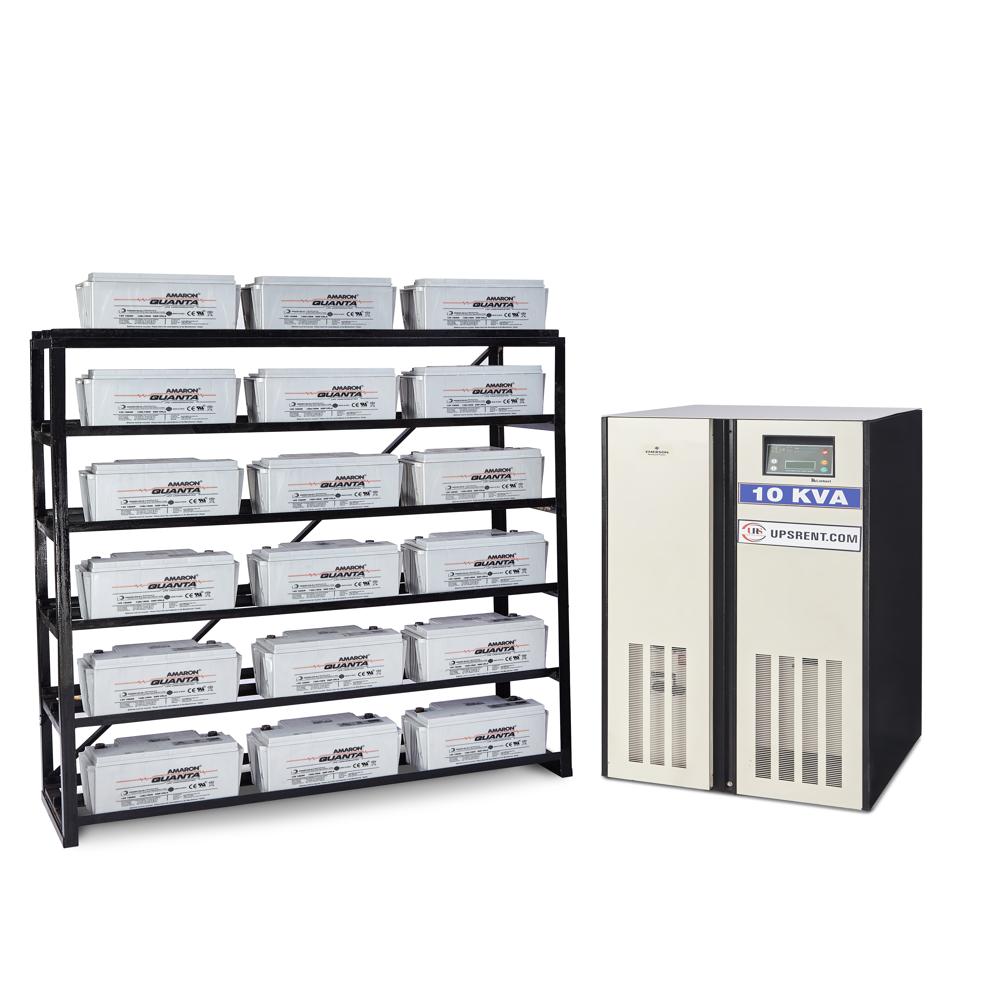

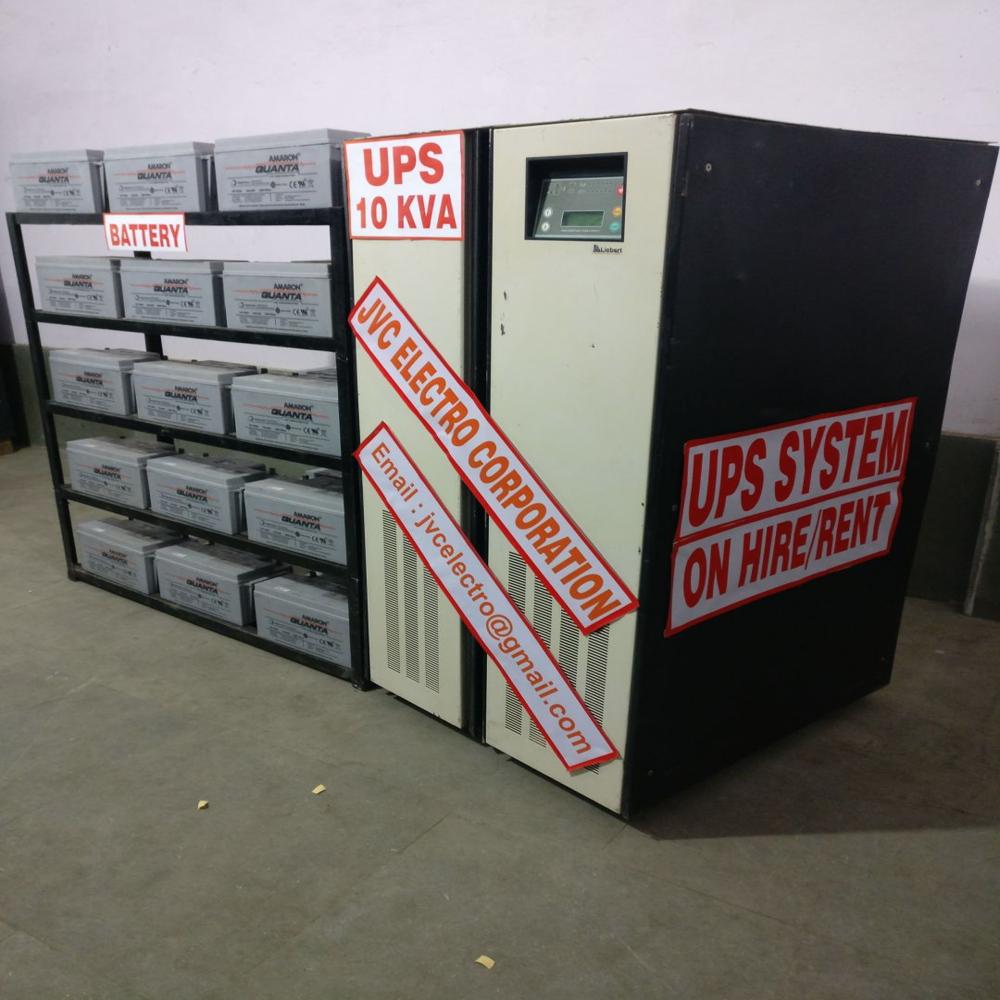

10 KVA UPS on rent

Product Description

10 kVA UPS System Summary

Power Rating:

• Nominal Rating: 10 kVA / 8 kW

Environment:

• Noise: 56 dBA

• Operating Temperature: 0C to 40C

• Storage Temperature: -25C to 70C

• Humidity: < 90% at 20C

• Altitude: < 1000m (Derate by 1% per 100m between 1000 and 2000m)

Physical Characteristics:

• Dimensions (D W H): 800 mm 710 mm 1400 mm

• Weight: 200kg

• Ingress Protection: IP20 (IP31 on request)

• Color: RAL 7021

Input:

• Rectifier Type: 6-pulse (optional 12-pulse)

• Voltage: 380/400/415V, 15%, 3-phase, 3-wire

• Frequency: 50 or 60 Hz 10%

• iTHD: Up to 3%

• Power Factor: Up to 0.99

Bypass:

• Voltage: 380/400/415V, 10%, 3-phase, 4-wire

• Frequency: 50 or 60 Hz 5%

DC Intermediate Circuit:

• DC Ripple: 1% with battery connected

• DC Nominal Voltage: 384V/396V/408V

• Battery Types Supported: Ni-Cd / Lead-Acid / VRLA / SMF

Output:

• Voltage: 380/400/415V, 3-phase, 4-wire

• Voltage Stability:

  • Steady State: 1%

  • 100% Load Step: 5%

• Power Factor Range: 0.9 lag to 0.9 lead without de-rating

• Frequency: 50 or 60 Hz

• Frequency Stability:

  • Synchronized with Bypass: 1%

  • Auto-Synchronized: 0.1%

• Efficiency: Up to 93% (AC/AC 3-phase)

Overload Capacity:

• 3-phase: 110% for 60 mins, 125% for 10 mins, 150% for 1 min

• 1-phase: 200% for 30 seconds

Short Circuit Current from Inverter:

• 3-phase: 1.5 In for 5 seconds (EN 50091-1-1)

• 1-phase: 2.2 In for 2 seconds

Voltage Distortion:

• With Linear Load: <1%

• With 100% Non-linear Load: <3% (Ph-Ph), <5% (Ph-N)

Output Handling:

• Max Deliverable Power with Non-linear Load (CF=3:1): 100%

• Max Unbalanced Load: 100%

• Voltage Displacement with 100% Unbalanced Load: 120 1

• Output Voltage Asymmetry with 100% Unbalanced Load: 2%

Communication:

• SNMP / HTTP, RS-485 / MODBUS, SiteScan, Remote Monitoring via Multilink / 5i/V
