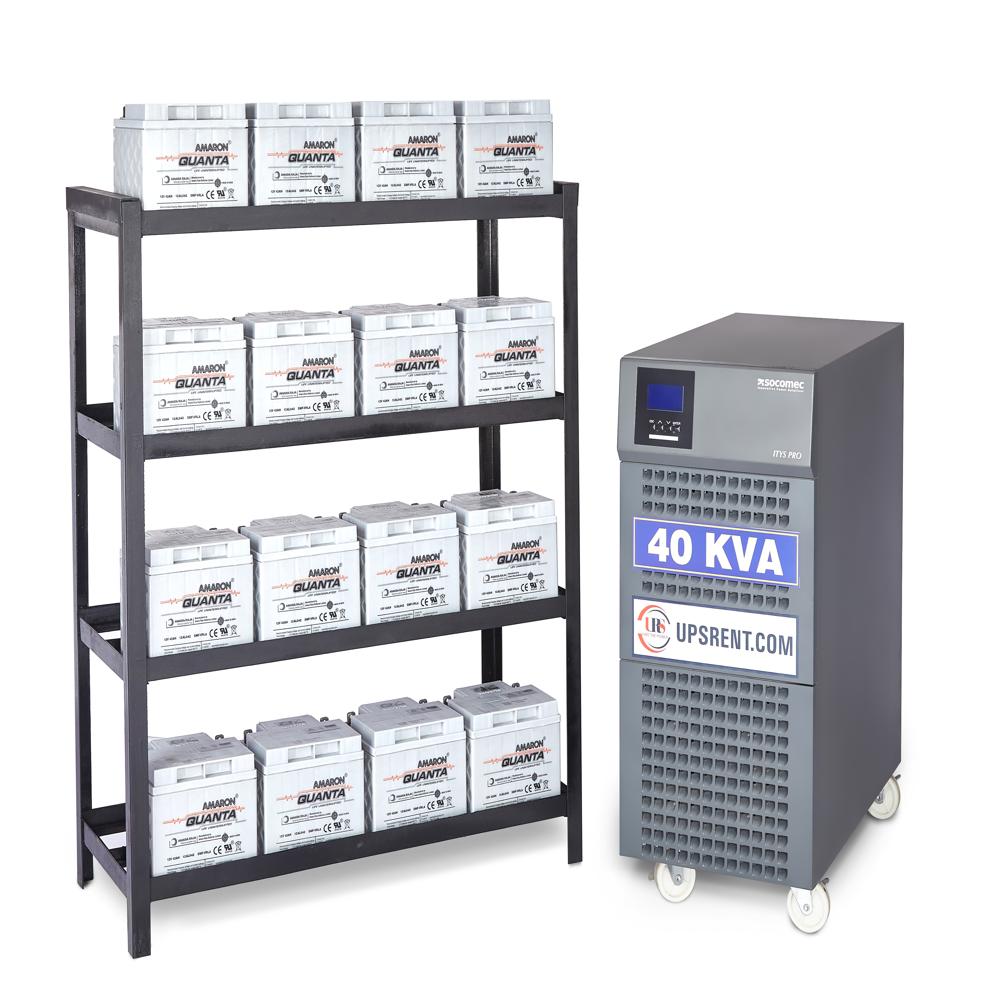

40 KVA Socomec UPS on rent

About 40 KVA Socomec UPS on rent

Socomec MASTERYS BC 40 kVA UPS Specifications

General Ratings:

• Apparent Power (Sn): 40 kVA

• Active Power (Pn): 36 kW

• Input/Output Configuration: 3/3

• Parallel Configuration: 1+1 or up to 6 modules (optional)

INPUT:

• Rated Voltage: 400 V 3-phase + Neutral

• Voltage Tolerance: 340 V to 460 V

• Rated Frequency: 50/60 Hz 10%

• Power Factor / THDI: Not specified in this section (usually >0.98 PF and <3% THDi with input filters)

OUTPUT:

• Rated Voltage:

  • 1-ph: 230 V (configurable to 220/240 V)

  • 3-ph: 400 V (configurable to 380/415 V)

• Voltage Tolerance: Static 1%, dynamic load variation per VFI-SS-111

• Rated Frequency: 50/60 Hz

• Frequency Tolerance: 2% (configurable from 1% to 8%)

• Overload Capacity:

  • 125% for 10 minutes

  • 150% for 1 minute

• Crest Factor: 3:1

BYPASS:

• Rated Voltage: Same as output voltage

• Voltage Tolerance: 15% (configurable from 10% to 20%)

• Rated Frequency: 50/60 Hz

• Frequency Tolerance: 2% (compatible with gensets)

EFFICIENCY:

• Online Mode at 100% Load: Up to 94.5%

ENVIRONMENTAL CONDITIONS:

• Operating Temperature: 0C to +40C (from 15C to 25C for max battery life)

• Relative Humidity: 95% without condensation

• Max Altitude: 1000 m without derating (max. 3000 m with derating)

• Noise Level:

  • @ 1m (ISO 3746):

    • 62 dBA (for 40 kVA)

UPS CABINET:

• Dimensions (W x D x H): 444 x 750 x 1400 mm

• Weight: 180 kg (without batteries)

• Degree of Protection: IP20

• Color: RAL 7012

STANDARDS:

• Safety: IEC/EN 62040-1, AS 62040.1.1

• EMC: IEC/EN 62040-2, AS 62040.2

• Performance: IEC/EN 62040-3, AS 62040.3

• Declaration: CE, RCM, EAC
